SprayMax® 1K UV Primer / Filler – Instant Cure

SprayMax® 1K UV Primer / Filler – 3680019 (375 g / 13.2 oz)

SprayMax® 1K UV Primer / Filler is a high-efficiency, UV-cured primer designed for fast repair workflows in professional refinishing environments. This aerosol primer offers strong filling properties and rapid curing when exposed to approved UV-A equipment.

Engineered for productivity, this UV primer can be ready for sanding in as little as 2–4 minutes under proper UV-A curing conditions. It is suitable for use on properly prepared metal, plastics, old paint surfaces, and composite materials.

Key Features

• 1K UV-cured primer with high filling capacity
• High productivity for spot and repair applications
• Suitable as an insulation filler
• Rapid UV-A curing (2–4 minutes under proper conditions)
• Compatible with conventional 1K and 2K topcoats

UV Curing Requirements

• Requires UV-A curing equipment
• Best option: UV-A Mercury Lamp
• Recommended: UV-A LED lamp (365 nm wavelength)
• Alternative: UV-A LED (395 nm wavelength; curing time depends on intensity and exposure)

Technical Specifications

• Part No.: 3680019
• Net weight: 375 g (13.2 oz)
• Color: Grey beige
• Solid content: approx. 64% by weight
• VOC (as packaged): 596 g/L
• Dry film thickness: 40–50 μm (1.6–2.0 mil)
• Flash time before UV cure: approx. 1 minute
• Coverage: approx. 12.9 sq ft at 50 μm

Recommended Substrates

• Iron and steel (cleaned and sanded)
• Galvanized steel (cleaned and sanded)
• Aluminum (cleaned and sanded)
• GRP, ABS, PVC, PP (use plastic adhesion promoter first)
• Polyester surfaces
• Old paint and factory coatings
• Wood, MDF, hard fiber boards (properly prepared)

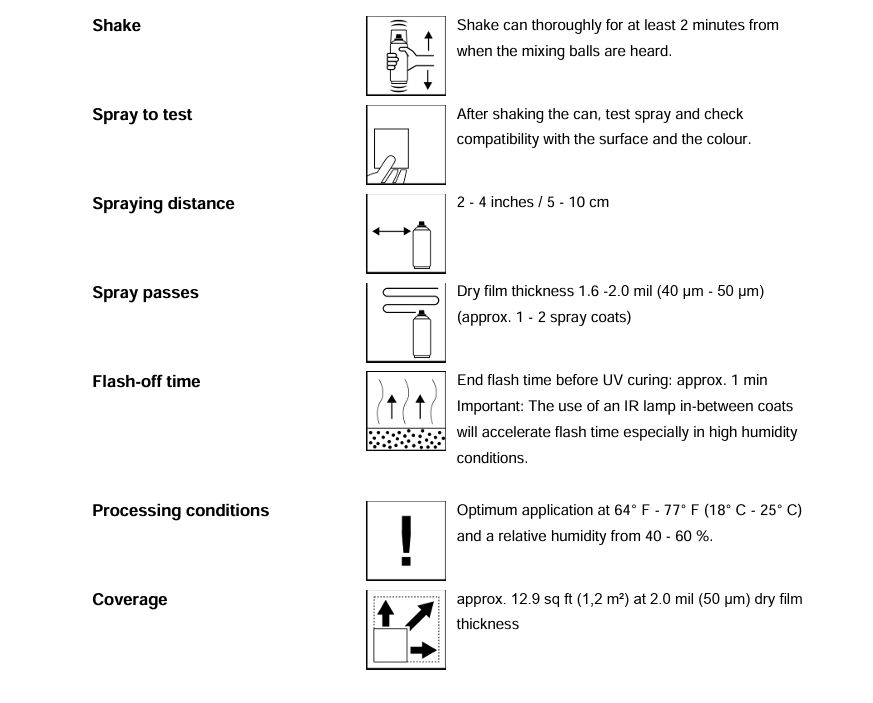

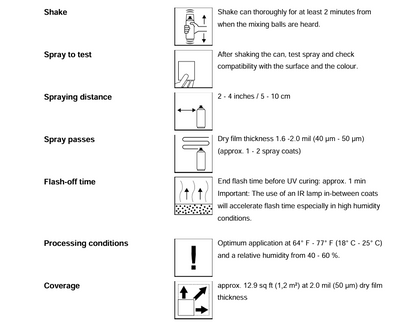

Application Notes

• Shake can for at least 2 minutes before use
• Spray distance: 2–4 inches (5–10 cm)
• Apply 1–2 coats for desired film build

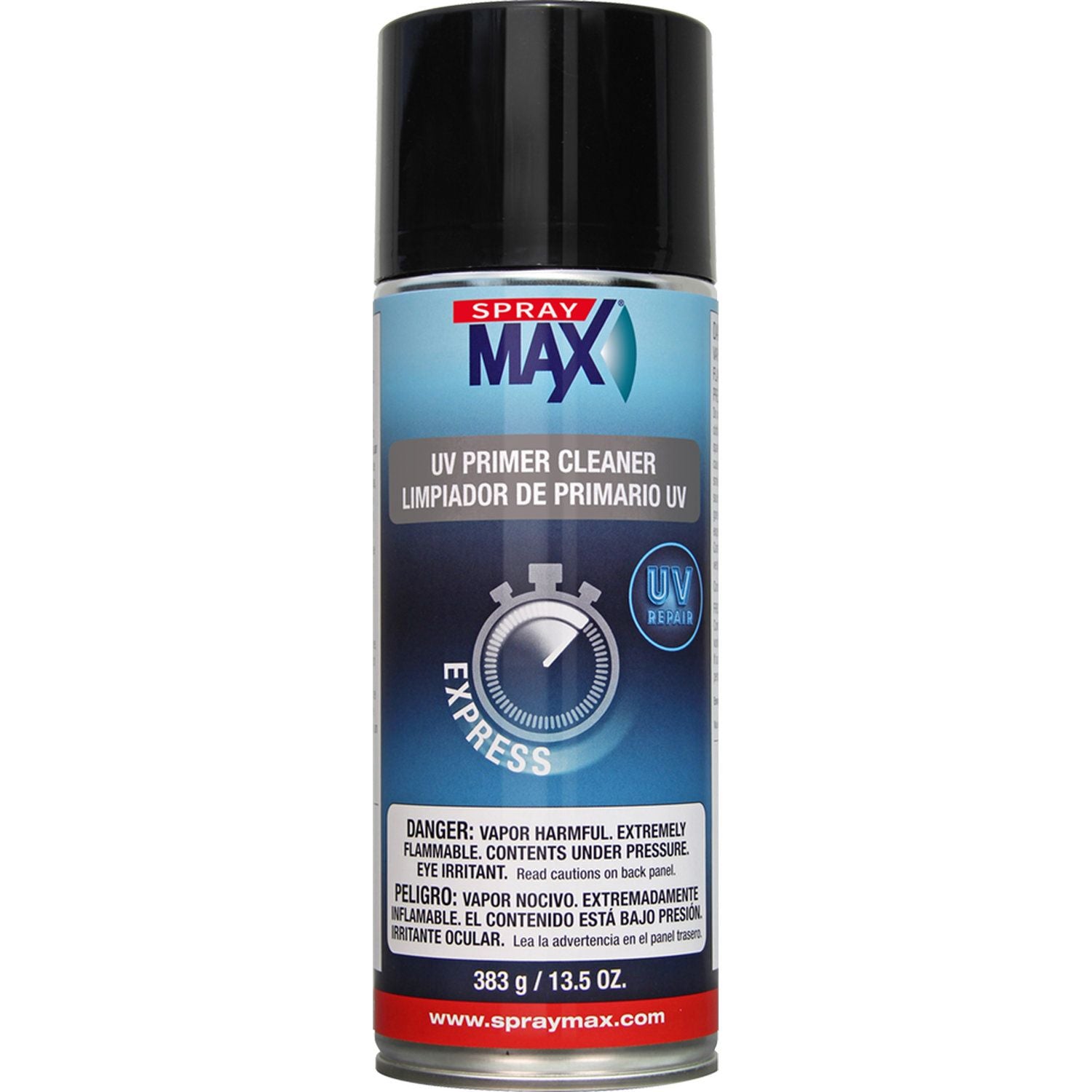

• After curing, remove adhesive layer with SprayMax UV Cleaner 3680290 before sanding
• Dry sand P600–P800 or wet sand P1000–P2000 before topcoat

System Compatibility

• Part of the SprayMax UV Paint Repair System
• Compatible with UV Clear (3680059)
• Compatible with UV Spot Blender (3680091)
• Compatible with conventional 1K and 2K topcoats

Important Notes

• Professional-use product only
• Requires proper UV-A curing equipment
• Always follow safety precautions and UV protective measures
• Refer to the official technical data sheet for full guidance
