High Teck E-Coat Repair Aerosol is a corrosion-resistant, direct-to-metal coating designed to replicate OEM factory e-coat finishes. Available in multiple factory-matched colors, this aerosol restores both the appearance and protection of original e-coated surfaces on replacement panels and repaired areas.
This versatile coating can be used as a DTM primer or as a standalone OEM-style finish. It provides excellent adhesion to bare metal, e-coat, primers, and painted surfaces while delivering long-term corrosion protection and UV resistance.
Ideal for collision repair, restoration, and panel replacement work, High Teck E-Coat helps recreate factory-correct finishes on structural and visible components alike.

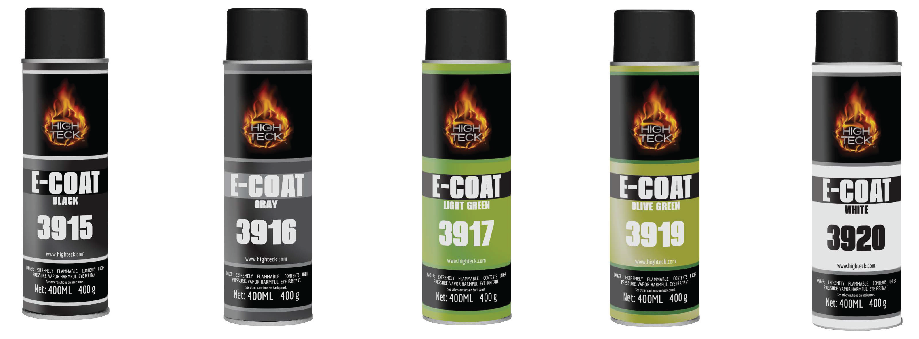

Available Colors
Color
Part Number
Finish Type

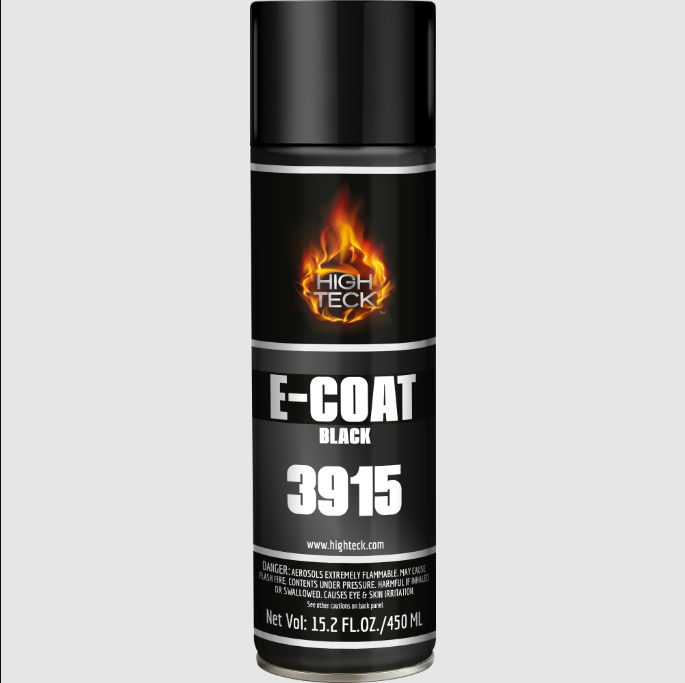

Black
3915
OEM E-Coat Match

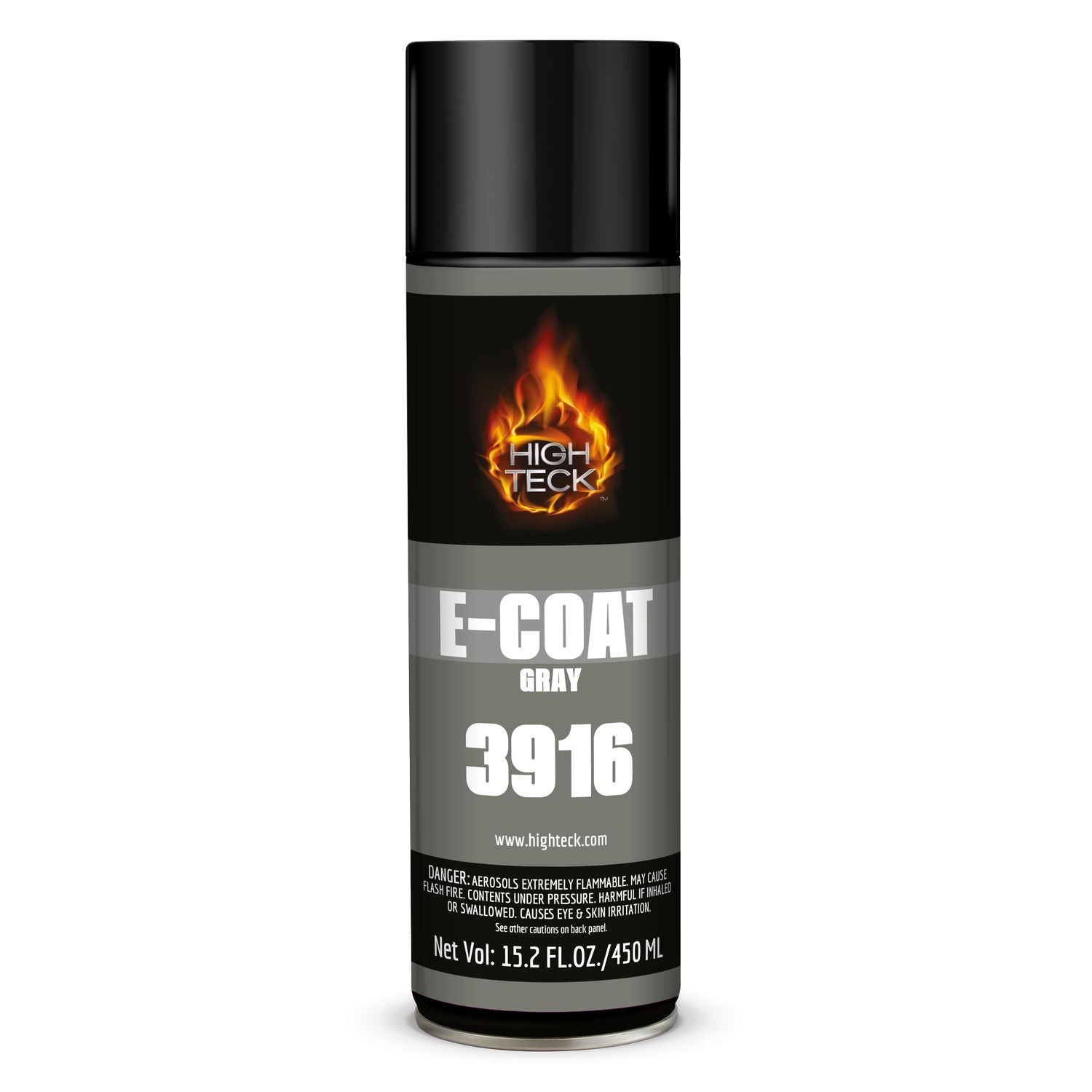

Gray
3916
OEM E-Coat Match

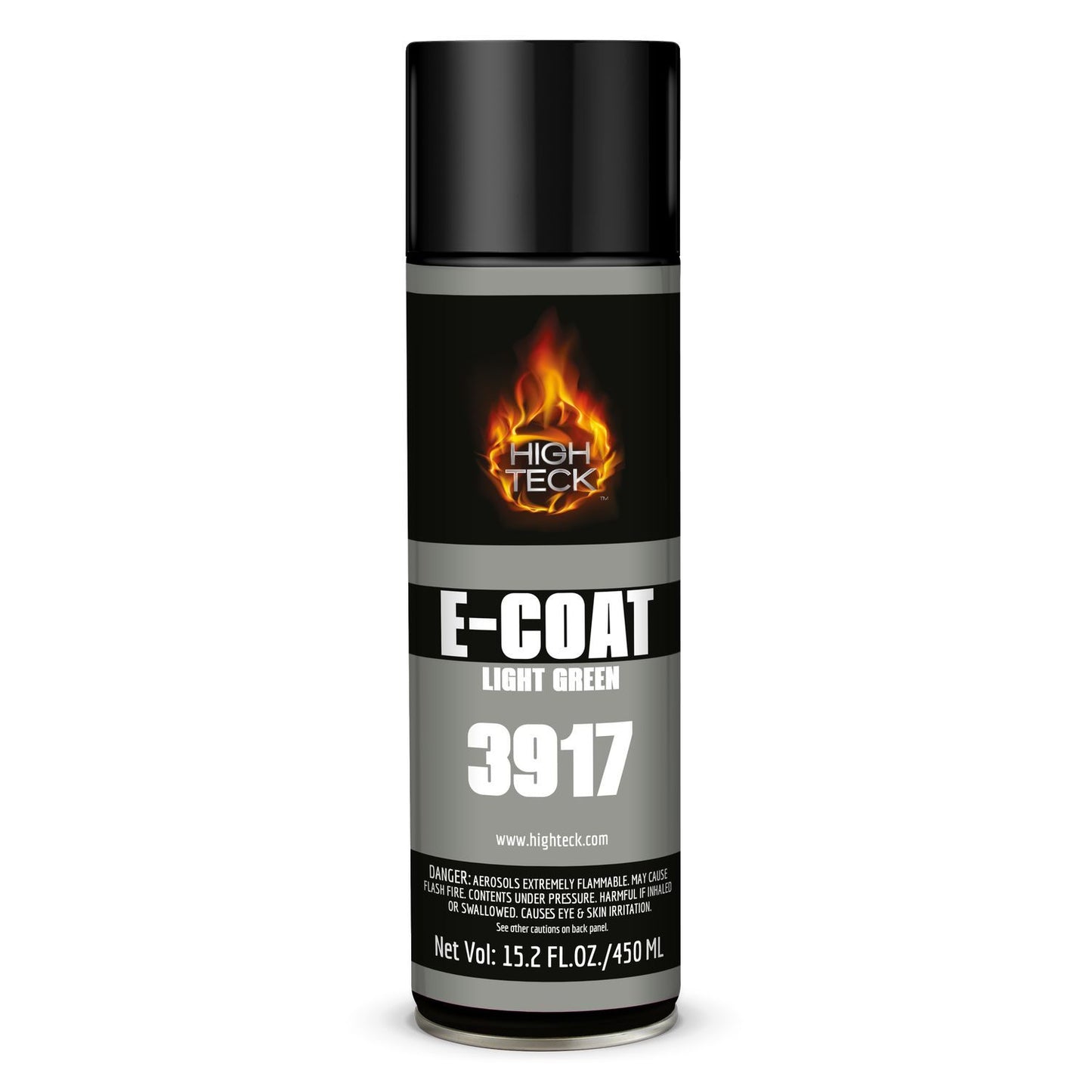

Light Green
3917
OEM E-Coat Match

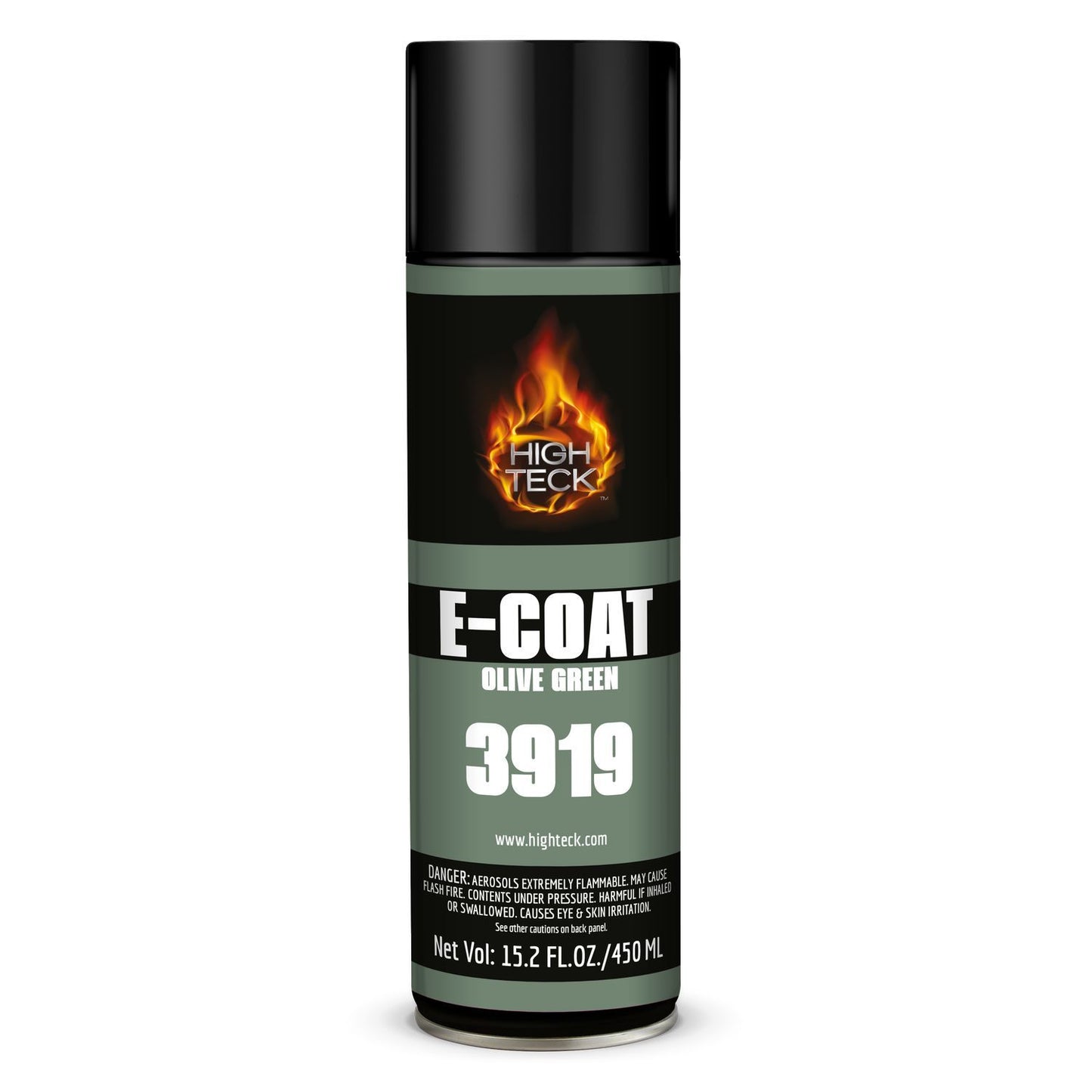

Olive Green
3919
OEM E-Coat Match

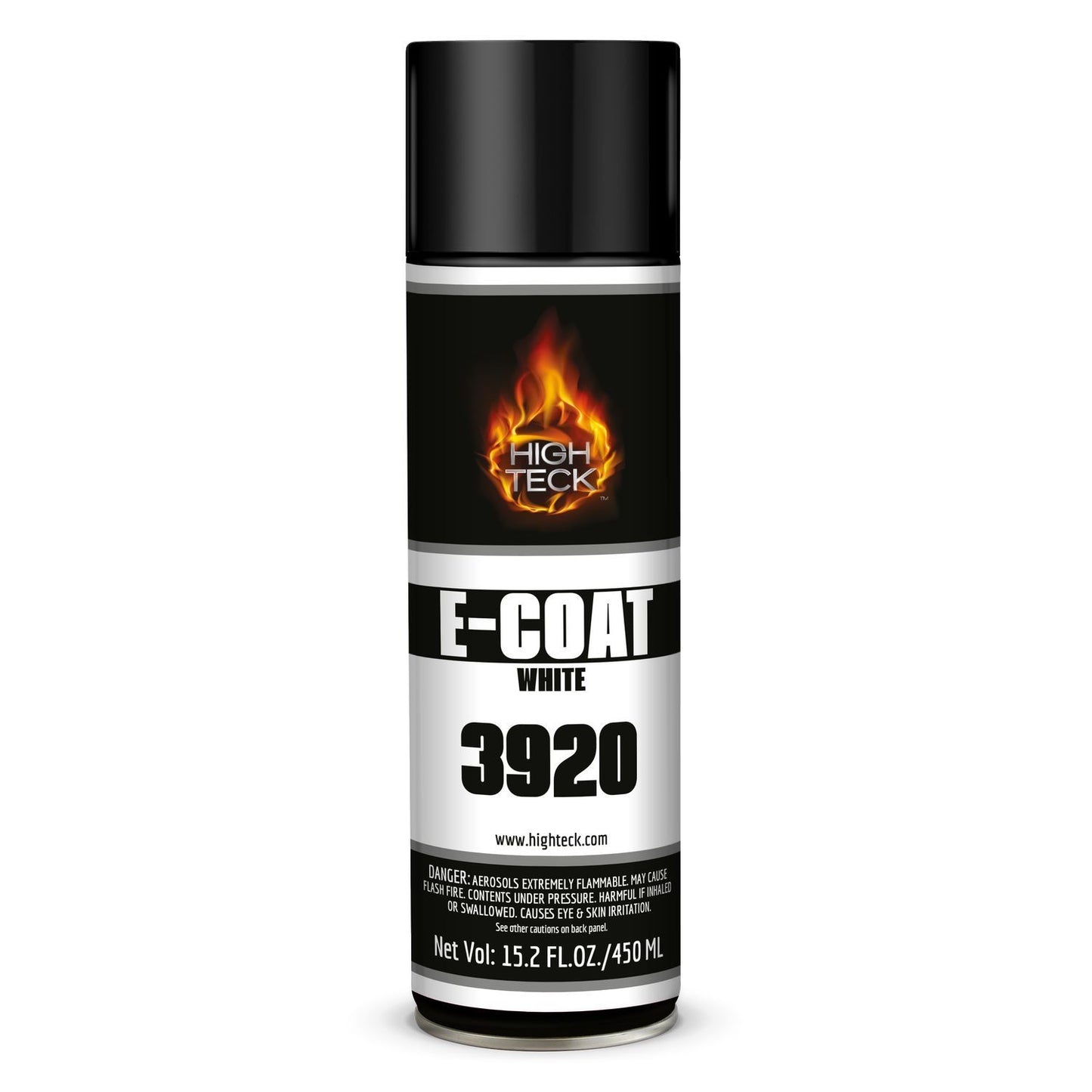

White
3920
OEM E-Coat Match
Key Features
Direct-to-metal e-coat repair coating
Matches OEM factory primer and e-coat colors
Excellent corrosion resistance technology
UV resistant finish for long-term durability
Superior adhesion to metal, primers, and painted surfaces
Compatible with most solvent and water-based topcoats
No etch primer required on steel or aluminum
Ideal for collision repair and restoration work
Common Applications
Replacement body panels
Vehicle floors and underbody areas
Engine bays and compartments
Core supports and structural components
Door skins and inner panels
Spot repairs on OEM-coated surfaces
Recommended Substrates
Lightly abraded OEM e-coat
Bare steel and aluminum
Polyester body filler
Prepared painted surfaces
Fiberglass and SMC
Application Instructions
Remove all rust, oxidation, and contaminants from the surface.
Abrade surface using 600P–800P grit sandpaper.
Shake can thoroughly for at least 2 minutes.
Apply 1–2 medium coats from approximately 10 inches away.
Allow 10 minutes flash time between coats.
Allow 20–30 minutes dust-free and 30–60 minutes full dry at 70°F.
Invert can after use and spray to clear nozzle.
Topcoat Recommendations
Topcoat Type
Instructions
Solvent-Based
Topcoat after 30 minutes
Water-Based
Allow full cure, then lightly scuff before application
Technical Specifications
Specification
Details
Brand
High Teck
Product Type
E-Coat Repair Aerosol
Format
450 mL Aerosol
Build Per Coat
0.60 mil
Maximum Build
1.0 mil
Coverage
Approx. 17 sq ft per can
Flash Time
10 minutes @ 70°F
Dry Time
30–60 minutes @ 70°F
Application Temp
70°F recommended
Storage Temp
40°F – 78°F
Important Note
For galvanized surfaces, apply an appropriate etching primer before using High Teck E-Coat. Always follow safety guidelines and read full product instructions before use.
Pro Tip
Keeping multiple OEM e-coat colors on hand allows you to match factory finishes more accurately during panel replacement or repair work—especially in visible areas like engine bays and door jambs.
