3M Automotive Attachment Tape – 20 yd (0.76 mm thin Gray Foam)

Description:
3M™ Automotive Attachment Tape is an OEM-approved acrylic foam tape designed for flush, streamlined attachment of lightweight trim and moldings. At just 0.03 in (0.76 mm) thick, this gray closed-cell acrylic foam tape combines strength, conformability, and high-performance acrylic adhesive on both sides.

The adhesive resists plasticizers, delivering strong peel and shear adhesion while adhering well to traditional paint systems. It’s ideal for permanent applications like badges, nameplates, emblems, moldings, and trim. Adhesion promoter is recommended when applying to plastic parts.

Variants (per roll):

Specifications (all variants):

• Brand: 3M™
• Series: Automotive Attachment Tape
• Color: Gray
• Thickness: 0.76 mm (0.03 in)
• Adhesive: Acrylic (resists plasticizers)
• Backing: Closed-cell acrylic foam
• Standards: UL A2109, QS 9000
• Applications: Badges, nameplates, emblems, lightweight moldings, door edge trim, wheel lip molding, luggage rack slats

Features:

• Thin 0.76 mm foam for flush, streamlined finish
• OEM approved and widely used in automotive assembly
• Acrylic adhesive delivers high peel and shear adhesion
• Excellent conformability with strong closed-cell foam backing
• Adheres well to paint systems and plastic parts (adhesion promoter recommended)

Instructions:

1. Clean and dry all surfaces before application.
2. Apply adhesion promoter to plastic substrates if required.
3. Apply tape with firm pressure to ensure full contact and wet-out.
4. Remove liner and attach part, pressing uniformly.
5. Allow adhesive to cure per 3M recommendations before stressing bond.

✅ This way you’ll have one clean product page with a dropdown for:

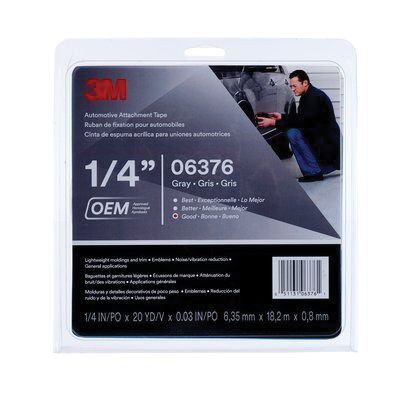

• 1/4" x 20 yd (06376)

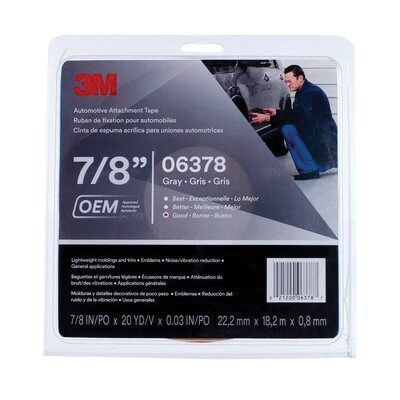

• 7/8" x 20 yd (06378)
